12V Range 0.01~19.99A Car Circuit Tester Current Test Fuse Diagnostic Tool Repair Detector Galvanometer Automotive Accessories
£14.79
1
- 100% brand new and high quality
- Easy to use
- Ideal for fault finding on automotive or commercial vehicle electrical circuit
- Quick measurement and high accuracy
- Measurement range: 0.01A~19.99A
- Max Load：20A/48Vdc for max.10 secs
- Accuracelectrical circuity: ±(2% of reading + 2 digits)
- Fuse Type Power Supply：Standard
- Power Supply:12V 23A (Including)
- Operating Condition:Temperature 0°C~40°C Relative Humidity: 75%
- Storage Condition:Temperature -10°C~50°C Relative Humidity 80%
- Color:Black+Red
- Material : Plastic

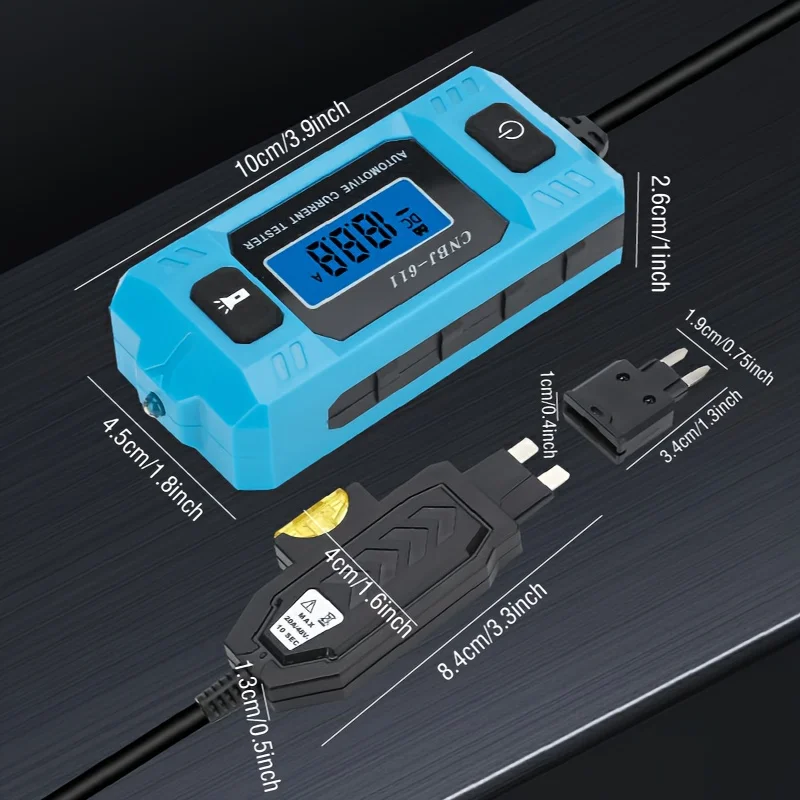

- Size:As Picture
- Turn off the vehicles engine
- Take out the fuse and put it in slot of the AE150. Please make sure the circuit protection is correct . (The detection fuse of the tester is 20A/48 V, standard type)
- Insert the plug of the tester into the vehicle fuse socket
- If necessary, start the vehicle engine and energize the circuit first. Then turn on the detector by pressing the power switch
- Under test, operate the circuit and the display will show the measured current
- Turn off the tester by pressing the power button again when you finish the measurement
- 1 set x Car Auto Current Tester
