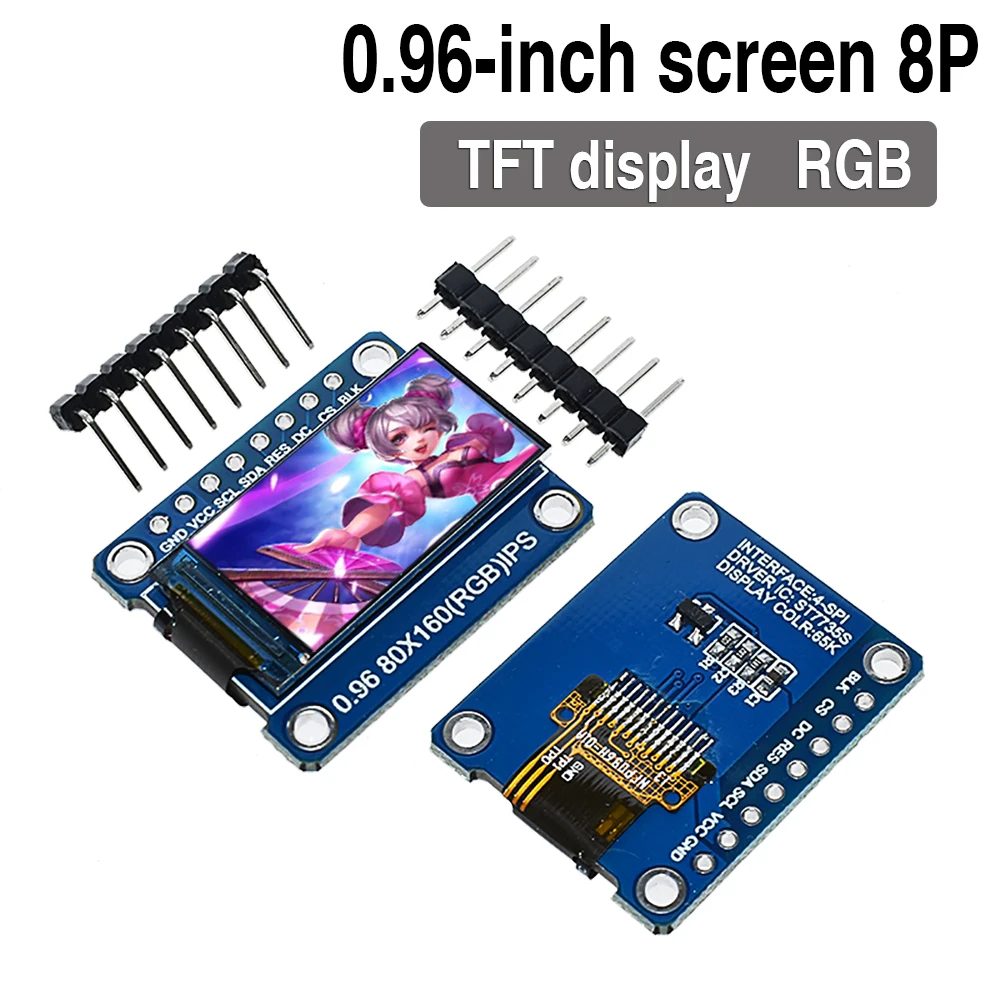

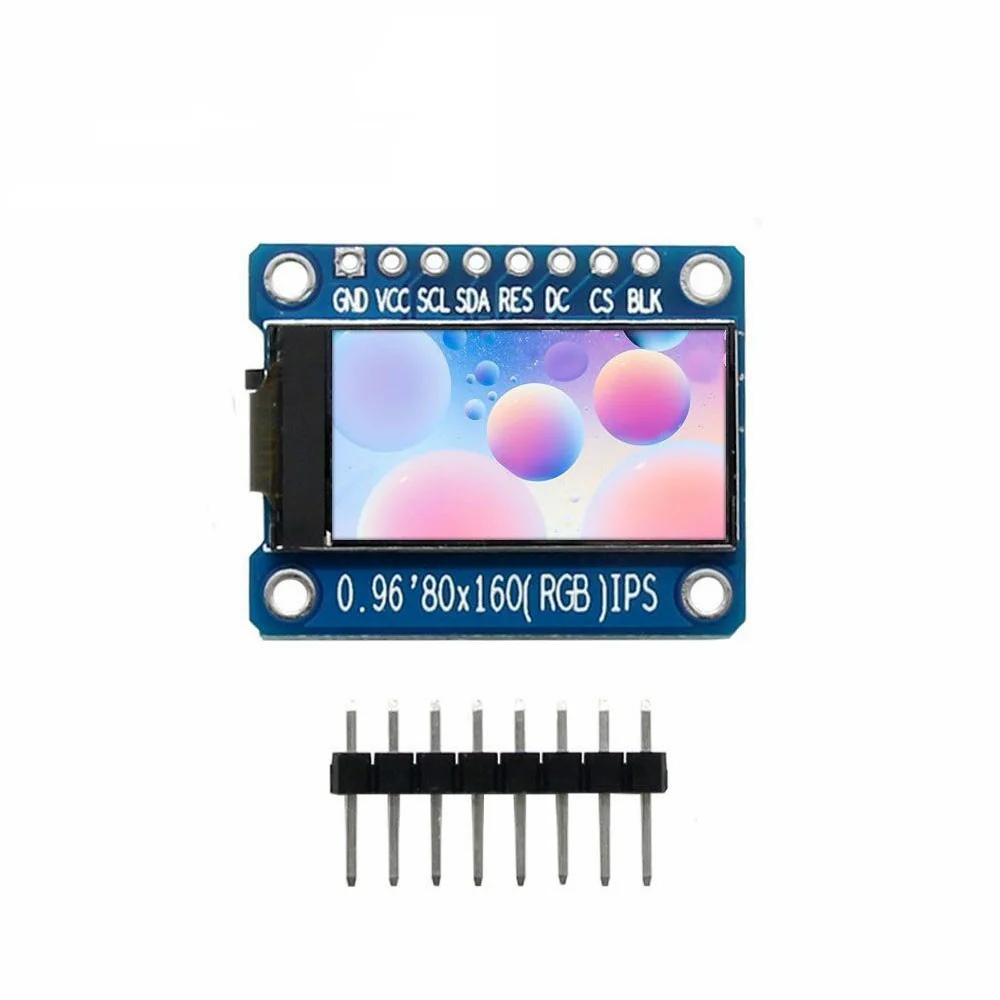

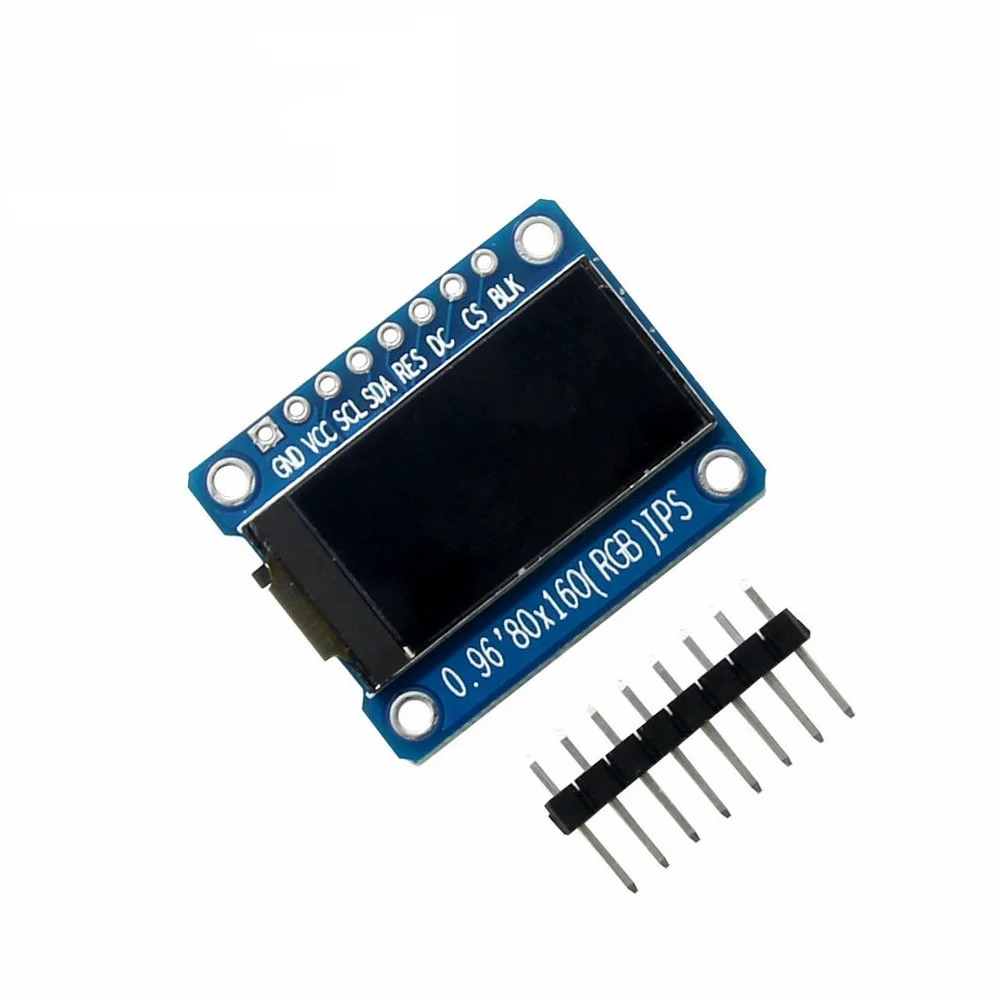

1-10PCS 0.96 Inch IPS Display OLED Module for Arduino 80*160 65K Colorful RGB TFT LCD Board ST7735 ST7735 DIY
£9.00
Color
1
- Size: 0.96 inch
- Material: New IPS color screen, brighter than ordinary TFT LCD
- Resolution: 80*160 display direction can be adjusted, horizontal screen vertical screen can

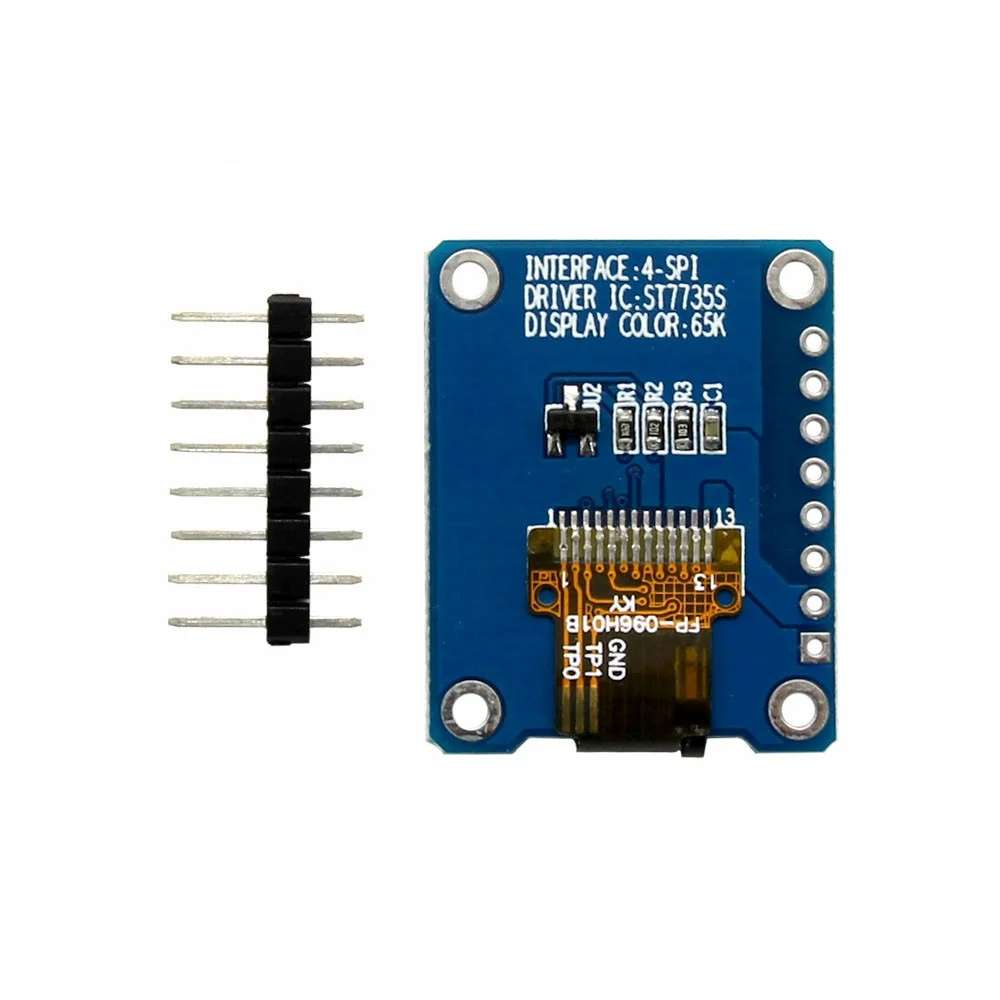

- Control chip: ST7735
- Display area: 10.8*21.696(mm)

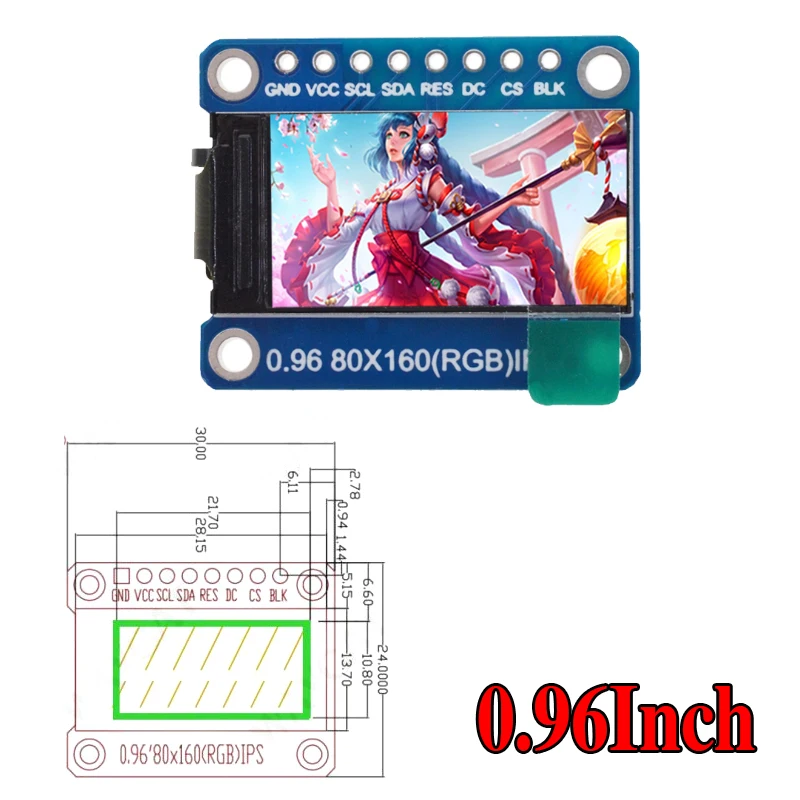

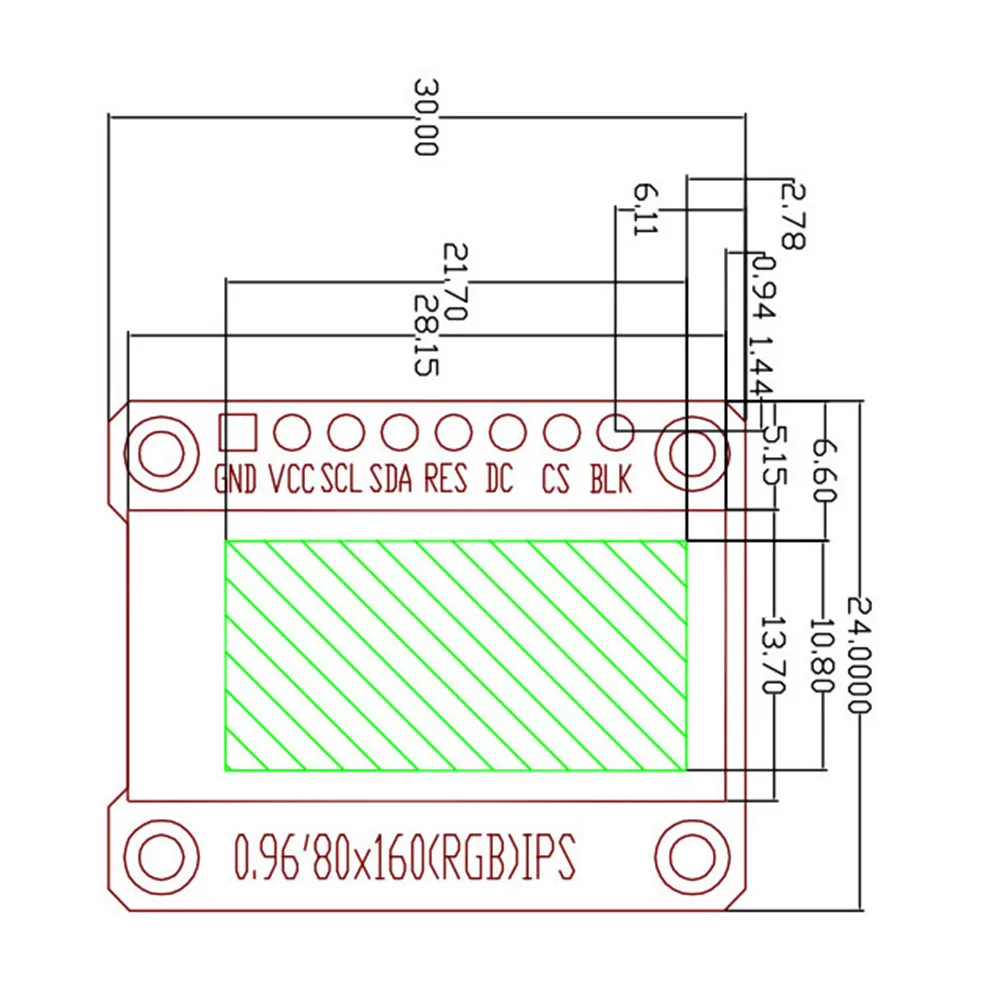

- Physical size: 24*30 (mm)
- Interface Type: SPI Interface
- Number of pins: 7Pin
- Working temperature: -20~70 degrees Celsius
- Operating voltage: 3.3V
- Weight: 5g
- GND (power ground)
- VCC (power is 3.3~5V)
- SCL (SPI clock line)
- SDA (SPI data line)
- RES (OLED reset, OLED needs to be reset after power on)
- DC (SPI data/command selection pin)
- BLK (LCD backlight control, default can be suspended, low level off the backlight)
